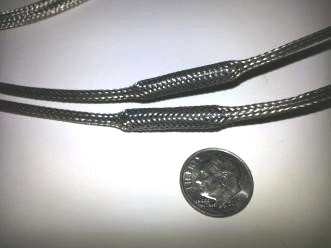

Mini Rope Tape

Specifications

  • Material: Fiberglass or Silicone Rubber
  • Element: Wound Wire
  • Operational Temperature Range: -45°C-220°C
  • Maximum exposure to temperature for UL recognition: 220°C
  • Maximum Exposure to temperature: 260°C
  • Wattage Range: 2.0 Watt/in2
  • Voltage Range: Up to 600V
  • (250V Max. for UL component recognition)
  • Size Range: 1’ to 16’ lengths
  • Thickness: 0.032” to 0.080” ± 0.003”
  • Leads: Teflon with Silicone Over braid
  • Stainless Steel grounding sheath
  • UL 1080 lead wire

Features

  • Chemical and moisture-resistant
  • UL 220/220 Rated Materials
  • UL Recognized components
  • AC or DC voltage
  • Temperature Controllers
  • Sensors: 1KΩ RTD, 100Ω RTD
  • Thermocouples: J, K, and E

Applications

  • Heat LVPG (BCl3, DCS, TEOS, C5F8, TCS)
  • UHV Bake-out
  • Vacuum Pumpline Heating
  • Testing Equipment and Sensitive Instrumentation
  • Medical Equipment
  • Condensation Prevention

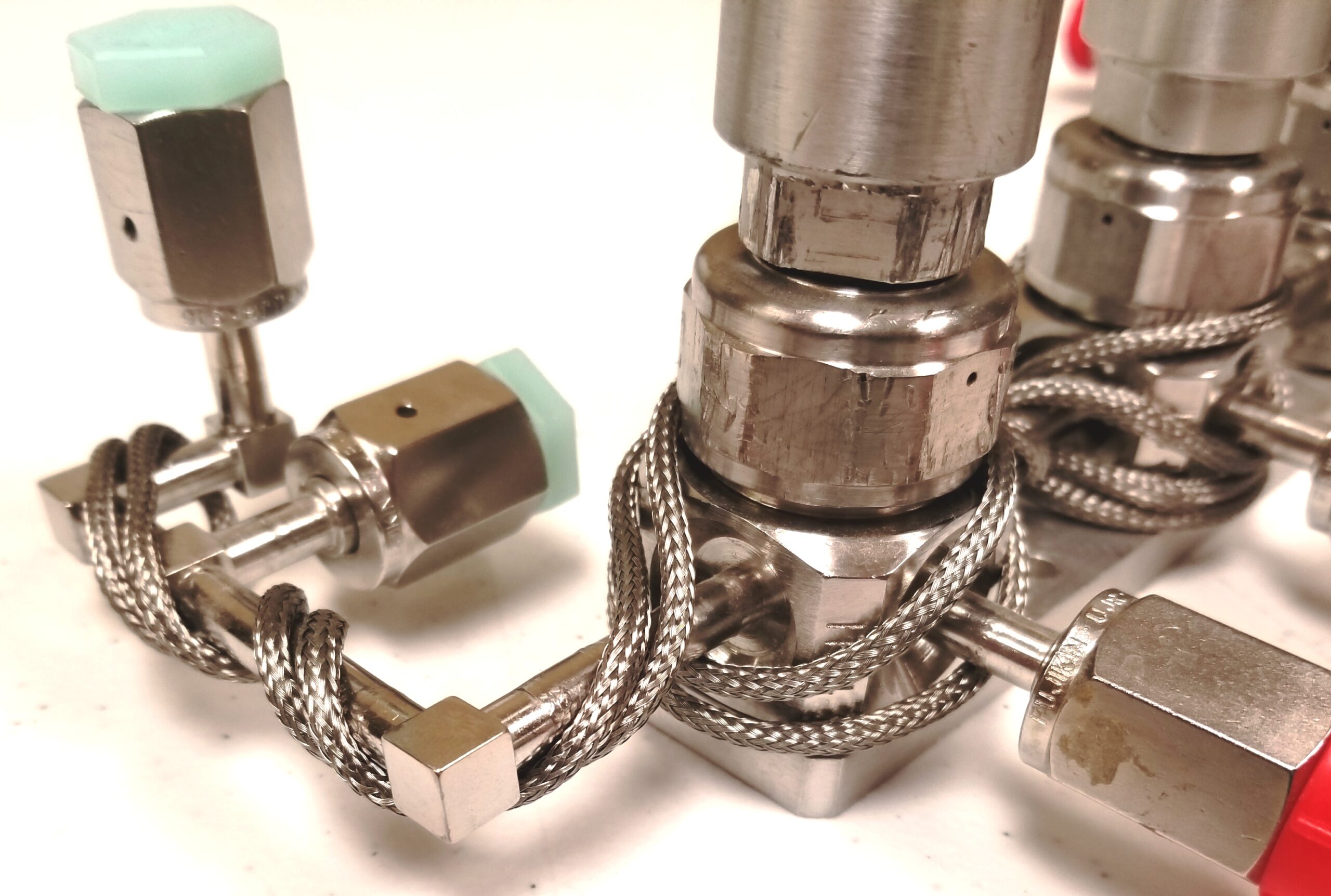

  • Heating Vessels, Piping, and Valves
  • Freeze Protection
  • Field Analyzers and Remote Detection Equipment
  • Pharmaceutical Manufacturing
